ZAP is zinc alloy anode material which are utilized for variety of equipment such as heat exchangers or earth sticks.This material has a wide range of applications in seawater, brackish water, fresh water, and underground.

※ZAP is a trademark or registered trademark of MITSUI MINING & SMELTING CO.,LTD.

Product compornents
Product features
Applications
Specifications
Construction guidelines

Click here to download a catalog

Product components

The product is zinc alloy anode casted made from high-purity zinc ingots, purity 99.995% or higher. We have a wide variety of shapes, such as plates and cylinders (round bars), and more than 50 different sizes.

Product characteristic

1．High performance and high reliability with over 50 years of experience.

Made of high-purity zinc ingots, purity 99.995% or higher. Extremely high anode efficiency.
Superior uniform dissolubility, and the effective potential difference required for corrosion prevention can be maintained over a long period of time, and the generated current is stable. The dissolving surface is smooth without irregularities, which can reduce fuel consumption of vessels and damage to fishing nets on fishing vessels.
Compared to other anodes, zinc alloy anodes have extremely low corrosion products and are less prone to clogging when used in circulating sea water pump.
Low self-corrosion and more than 95% of it is available as effective corrosion protection current, providing high corrosion protection effect.
Less affected by transform of the current density, as a result, it is able to keep excellent performance toward low current density.
ZAP-C is capable of generating steady anode potential under high-temperature water
Even though multitype of paint and coating materials are combined, zinc alloy anode does not give damage on them.
Automatically adjusts current generation
The product does not generate sparks even if dropped during installation, and is safe to use on tankers and other locations where sparks are not permitted.

2．The simple installing process

Easy and secure installation with bolted or welded fixation.

Applications

Shell plates of fishing vessels

Shell plates of tankers

Shell plates near screws

Ballast tanks

Heat exchangers

Specifications

1.Reference Standers

Chemical components

The standard of ZAP-A is comprised of pure zinc combined with aluminum as metal elements.
It is possible to supply ZAP-C which consists of pure zinc components as made-to order products as well.

Shapes and sizes

1-1)Plate and bar

Type	Product code	Product code	Weight（kg）	Primary applications	Shapes
Type	Product code	thickness×wideness×length	Weight（kg）	Primary applications	Shapes
B	B-1	20 ×70× 150	1.2	Shell plates、Underwater metal constructions、Condensers、and Heat exchangers
	B-1/2	20 ×70× 75	0.58
	B-1A	17.5 ×70× 150	1.04
	B-2	25 ×70× 150	1.46
	B-2T	30 ×70× 150	1.8
	B-3	20 ×100× 200	2.5
	B-3A	19 ×100× 200	2.3
	B-3A(S)	15 ×100× 200	1.9
	B-4	30 ×100× 200	3.6
	B-4(50)	50 ×100× 200	5.4
	B-4/2	30 ×100× 100	1.82
	B-4/2(50)	50 ×100× 100	2.6
	B-6	20 ×150× 300	5.9
	B-8	25 ×150× 300	7.3
	B-9	30 ×150× 300	8.3
	B-9(50)	50 ×150× 300	13.6
	B-9/2	30 ×150× 150	4.0
	B-9/2(50)	50 ×150× 150	6.6
N	N-1	20 × 70 × 150	1.32	General uses
	N-6	20 × 150 × 300	6.1
	N-8	25 × 150 × 300	7.7
S	S-1	20 × 70 × 150	1.48	Ship and underwater structures
	S-2	25 × 70 × 150	1.85
	S-3	20 × 100 × 200	3.0
	S-4	30 × 100 × 200	4.2
	S-6	20 × 150 × 300	6.5
	S-8	25 × 150 × 300	8.0
	S-9	30 × 150 × 300	9.5
	S-18(A)	50 × 75 × 800	18.2
R	R-8	35 × 35 × 1000	7.5	Water ballast tanks, underwater structures and underground facilities
	R-16	50 × 50 × 1000	15.5
	R-18	75 × 75 × 500	17.6

1-2) Columnar shape

Type	Product code	Product code	Weight（kg）	Primary applications	Shapes
Type	Product code	thickness×wideness×length	Weight（kg）	Primary applications	Shapes
E	E-1	φ100 × 25	1.2	Evaporators
E	E-3	φ100 × 50	2.4	Evaporators
M	M-20	φ20 ×300	0.7	Mortar ships, Heat exchangers and other special structures
	M-25	φ25 ×300	1.0
	M-30	φ30 ×300	1.5
	M-30L	φ30 ×320	1.6
	M-35	φ35 ×300	2.1
	M-40	φ40 ×300	2.6
	M-45	φ45 ×300	3.5
	M-50	φ50 ×300	4.2
	M-55	φ55 ×300	5.1
	M-60	φ60 ×300	6.1
	M-60L	φ60 ×320	6.5
	M-65	φ65 ×300	7.1
	M-70	φ70 ×300	8.2
	M-75	φ75 ×300	9.4
	M-80	φ80 ×300	10.7
	M-90	φ90 ×300	13.6
	M-100	φ100 ×300	16.8

2.Made-to order

We can meet various requests such as ring shapes, with plugs, etc.
ZAP-C , pure zinc component, can also be supplied as a made-to-order product.

Construction guidelines

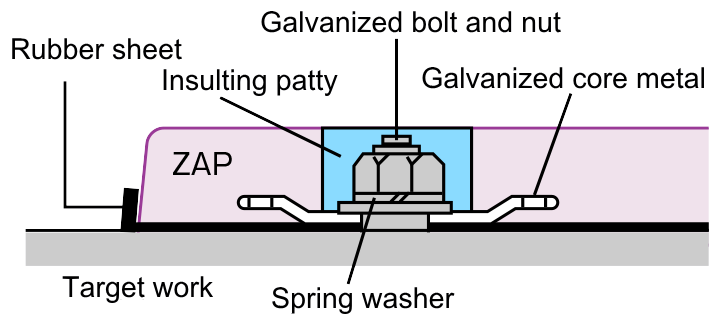

1) Type B

When ZAP is mounted to body, it is the most important to make sure to carry electricity to both, to connect ZAP to protective coverings. Thereby, it is required to avoid using rusted bolts and nuts and bind foreign substances, in order to tight it properly.
When ZAP is mounted to body, it is the most important to make sure to carry electricity to the both of them, in order to connect ZAP to protective coverings.Thereby, it is required to avoid to use rustted bolts and nuts and bind foregin substances, in order to tight it properly.
It is required to keep metal surface of ZAP clean and exposed in order to generate effects exceptionally well, instead of painting and putting oil on it

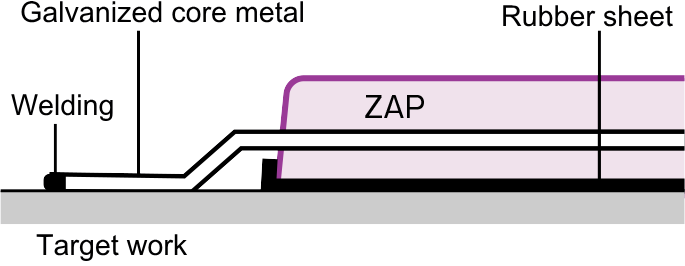

2) Type S

The exposed portion of the ZAP core is welded to the target work.
Paint the surface of the exposed core metal after installation.
It is required to keep metal surface of ZAP clean and exposed in order to generate effects exceptionally well, instead of painting and putting oil on it
